Pfsense use snort as IPS( Snort Used by fortune 500 companies and goverments Snort is the most widely deployed IDS/IPS technology worldwide. It features rules based logging and can perform content searching/matching in addition to being used to detect a variety of other attacks and probes, such as buffer overflows, stealth port scans, CGI attacks, SMB probes, and much more. )
II/INSTALL
In This lab we need setup network with info:
Wan Interface:192.168.20.203
Lan Interface:172.16.1.1
STEP 1:Install pfsense as ip
STEP 2:Install snort(The package is available to install from System > Packages and you must only install SNORT or SNORT_DEV never both. It is strongly suggested you get a paid subscription form www.snort.org in order for you to download the latest rules. )
STEP 3:After Install done We configure snort(Services > Snort)click tab Setting and configure as image
Notes:
Block offenders:Pfsense will automatically block hosts that generate a snort alert
Remove blocked hosts every: It Will auto remove hosts from tab blocked
Oinkmaster code:you need register 1 Account in Snort or buy (http://www.snort.org/vrt/buy-a-subscription/ will get the the latest rule updates 30 days faster than registered users)
Step 4:click tab update rules(please waith about 4-10 minutes)

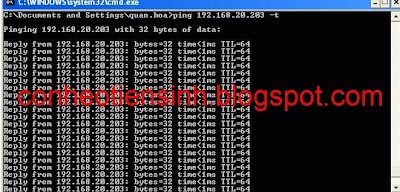

Step 5:Test before attack(ping external ip)
Step 6:user super scan tool scan ip external and check tab blocked
Step 7 :access agian ip external
Step 8:Delete ip attacker in tab blocked and test againBeside You can use Blocking Skype ,Yahoo ,P2P.... with pfSense and Snort.I will intro later
